`xu2024` — the 20-US-city cross-domain axis (Honolulu / San Francisco)¶

What. Xu, Zheng, Hu, Feng & Ma’s (2024) unified 20-US-city traffic- assignment dataset ([xu2024unified], docs/REFERENCES.md): real OSM-derived road networks with published AequilibraE user-equilibrium flows, CC BY 4.0, fetched by HTTP byte-range extraction (never the whole 276 MB archive) and cached. This is the benchmark’s cross-domain axis — every other scored instance is either a hand-built analytic anchor or one of the four donated TNTP networks; these are disjoint real cities.

Why it is in the benchmark. A benchmark that claims to test generalization needs instances off the standard four. This notebook covers the two CI-sized rungs, Honolulu (11,205 links) and San Francisco (18,002 links) — never the other 15 cities, which are fetchable but not CI-run. See docs/design/adr-033-xu2024-dataset.md for the full derivation, the 20-city audit (17 ship, 3 excluded and named), and every measured anchor.

Scope. The dataset’s own wrong-centroid defect (disclosed, not hidden), the published flows’ machine-exact conservation (a provenance check, not a best- known-oracle claim), and genuine cross-implementation agreement — the repo’s own bfw converging toward the same equilibrium the published AequilibraE run found.

How this notebook is graded¶

A notebook never claims a number it does not compute in that cell. Every scored quantity below — the node-balance residual, the bfw/published correlation — is recomputed live from the scenario’s own data, in the cell where it is claimed. This data notebook makes no best-known-oracle claim: the published AequilibraE flows are a LOOSE reference (their own relative gap is ~1e-3, ~11 orders looser than a TNTP best-known solution) used only for a provenance cross-check, never as ground truth (README, Certified, not self-reported).

# Setup. xu2024 is numpy/stdlib only — no optional extra, so no package guard
# cell. It IS a network-fetched, checksummed dataset (never vendored, P9): the
# load below is gated the way `tests/conftest.py`'s `load_or_skip` gates every
# data-backed test — a clear, informative failure rather than a bare traceback
# if this is the first run offline. `TABENCH_REQUIRE_DATA=1` (as CI does) is
# honored by the exception message alone; this notebook, like every guarded
# notebook, halts rather than silently degrading.
#
# The inline backend is Agg-based: figures render headlessly into the
# notebook, so CI can execute tutorials without a display. NEVER
# matplotlib.use("Agg") in-kernel — it silently suppresses inline capture.
%matplotlib inline
import numpy as np

from tabench import (
    BiconjugateFrankWolfeModel,
    Budget,
    Evaluator,
    RngBundle,
    Trace,
    XU2024_RUNGS,
    load_scenario,
    viz,
)
from tabench.data import xu2024_citation
from tabench.metrics.gaps import node_balance_residual

assert XU2024_RUNGS == ("honolulu", "sanfrancisco")


def _load_rung(city: str):
    try:
        return load_scenario(f"xu2024-{city}")
    except Exception as exc:
        raise RuntimeError(
            f"xu2024-{city} data unavailable (offline, or a first-run fetch "
            f"failed): {exc}\nThe fetch is checksummed, cached under "
            "~/.cache/tabench, and needs network access on first run "
            "(adr-033)."
        ) from exc


honolulu = _load_rung("honolulu")
print(f"scenario      : {honolulu.name}")
print(f"family        : {honolulu.family}")
print(f"zones/nodes/links : {honolulu.network.n_zones}/{honolulu.network.n_nodes}/{honolulu.network.n_links}")
print(f"total demand  : {honolulu.demand.total:.1f}")

scenario      : xu2024-honolulu
family        : xu2024-honolulu
zones/nodes/links : 117/2982/11205
total demand  : 107515.2

The wrong-centroid defect (disclosed, machine-verified)¶

The dataset’s own published AequilibraE run injected OD demand at node ids 1..Z — the authors’ own AequilibraE_assignment.py calls g.prepare_graph(np.arange(zones)+1) — rather than the intended tract centroids (median 6.4 km off). TABenchmark ships the AS-PUBLISHED instance: self-consistent on the 1..Z-centroid graph, but a DIFFERENT instance from the dataset’s TransCAD side, which used the correct centroids. Cross-solver agreement against TransCAD is never claimed here — the disclosure travels IN-ARTIFACT, not only in this notebook.

print(honolulu.reference.note)
assert "AS-PUBLISHED" in honolulu.reference.note
assert "not claimed" in honolulu.reference.note
print()
print(xu2024_citation())

Published AequilibraE UE link flows (matrix_ab), own relative gap ~1e-3 — a LOOSE published reference, NOT a best-known oracle. AS-PUBLISHED wrong-centroid instance (demand injected at node ids 1..Z, not the tract centroids; adr-033). Cross-solver agreement against the dataset's TransCAD flows is not claimed.

Xu, X., Zheng, Z., Hu, Z., Feng, K. & Ma, W. (2024). A unified dataset for the city-scale traffic assignment model in 20 U.S. cities. Scientific Data 11:325, DOI 10.1038/s41597-024-03149-8. Data: figshare https://doi.org/10.6084/m9.figshare.24235696 (v4, file 48908890), licensed CC BY 4.0.

Published-flow conservation (a provenance check, not an oracle)¶

The published AequilibraE flows are not a best-known oracle like the TNTP *_flow.tntp solutions (those certify at AEG ~1e-15): the paper’s own relative gap is ~1e-3. What IS machine-verifiable is that the published flows conserve demand exactly on the AS-PUBLISHED 1..Z-centroid graph — recomputed here, not quoted.

residual = node_balance_residual(honolulu, honolulu.reference.link_flows)
print(f"published-flow node-balance residual : {residual:.2e}")
assert residual < 1e-9
metrics_published = Evaluator(honolulu).evaluate(honolulu.reference.link_flows)
print(f"feasible : {metrics_published['feasible']:.0f}")
assert metrics_published["feasible"] == 1.0

published-flow node-balance residual : 1.09e-11
feasible : 1

Cross-implementation agreement: the repo’s own `bfw`¶

Genuine cross-implementation agreement, at a CI-sized budget (the full in-sprint measurement runs 400 iterations to relative gap 1.07e-4 with correlation 0.99992 — this cell uses a small budget, exactly as the test suite’s CI anchor does, and checks the SAME structural properties: feasible, and correlated with the published flows above 0.99).

trace = Trace()
BiconjugateFrankWolfeModel().solve(honolulu, Budget(iterations=30), RngBundle(0), trace)
v_bfw = trace.final.link_flows
metrics_bfw = Evaluator(honolulu).evaluate(v_bfw)
corr = float(np.corrcoef(v_bfw, honolulu.reference.link_flows)[0, 1])
print(f"bfw (iterations=30) : relative_gap={metrics_bfw['relative_gap']:.4f}  "
      f"feasible={metrics_bfw['feasible']:.0f}")
print(f"correlation with published AequilibraE flows : {corr:.5f}")
assert metrics_bfw["feasible"] == 1.0
assert corr > 0.99

bfw (iterations=30) : relative_gap=0.0061  feasible=1
correlation with published AequilibraE flows : 0.99951

The other CI rung: San Francisco¶

Same load path, same disclosure, same conservation check — xu2024’s only OTHER CI-sized rung. San Francisco is larger (18,002 links vs Honolulu’s 11,205); this notebook checks conservation only, to keep runtime CI-friendly (a full bfw solve on San Francisco is a local-only, not a CI, computation — adr-033).

sanfrancisco = _load_rung("sanfrancisco")
print(f"scenario      : {sanfrancisco.name}")
print(f"zones/nodes/links : {sanfrancisco.network.n_zones}/{sanfrancisco.network.n_nodes}/{sanfrancisco.network.n_links}")
print(f"total demand  : {sanfrancisco.demand.total:.1f}")

residual_sf = node_balance_residual(sanfrancisco, sanfrancisco.reference.link_flows)
print(f"published-flow node-balance residual : {residual_sf:.2e}")
assert residual_sf < 1e-9
assert Evaluator(sanfrancisco).evaluate(sanfrancisco.reference.link_flows)["feasible"] == 1.0

scenario      : xu2024-sanfrancisco
zones/nodes/links : 194/4986/18002
total demand  : 168828.0
published-flow node-balance residual : 1.46e-11

Visualize¶

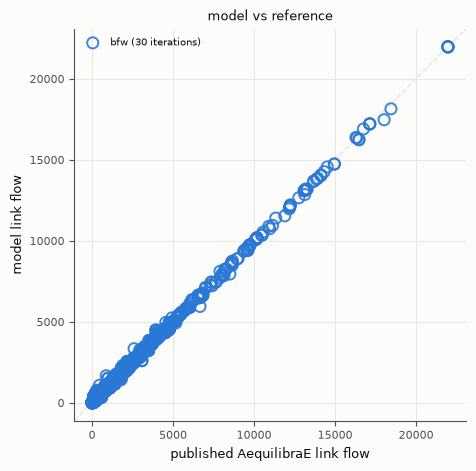

Honolulu’s flows are the certified artifact (per-link, on a road Network), so tabench.viz applies (adr-035’s viz rule). At 11,205 links a network diagram is illegible — the honest visualization at this scale is the flow-scatter, cross-implementation agreement made visual.

display(viz.plot_flow_scatter(
    ("published AequilibraE", honolulu.reference.link_flows),
    {"bfw (30 iterations)": v_bfw},
))

../../_images/730c7ffd45d6d560a8b411537b991863a5b5ce24eee6236f292efc3f3088cf6f.png

Takeaways & pointers¶

Disclosed, not hidden. The wrong-centroid defect travels in the scenario’s own reference.note, not only in the ADR — a benchmark that ships a known defect says so in the artifact itself.
A provenance check, not an oracle. The published flows’ own relative gap is ~1e-3; what this notebook certifies is conservation (exact) and cross-implementation correlation (>0.99) — never a best-known-flow claim.
The cross-domain axis is real cities, not just a bigger TNTP net. 17 of 20 cities ship; 3 are excluded and NAMED (Washington, Pittsburgh, Phoenix) — further evidence of the same wrong-centroid defect, not swept under a rug.
Where next. bo4mob (02-bo4mob.ipynb) for a second, very different data family (no BPR network, no true OD — an engine-liveness story instead); the full 20-city audit and every measured anchor in docs/design/adr-033-xu2024-dataset.md.
