dtd-horowitz — Horowitz’s (1984) cost-smoothing SUE dynamics

What. Travellers carry an exponentially-smoothed perceived link-cost vector p, logit-load at p, and update p ← (1−w) p + w t(v) toward experienced costs. The rest point is the logit SUE.

Why it is in the benchmark. Its distinctive property is a STABILITY THRESHOLD: the constant-weight smoothing map is a stable attractor only below w* ≈ 0.81 on this anchor; above it (w=1, the naive current-cost model) it settles into a period-2 limit cycle — the instability the model exists to exhibit, so no damping is applied. See the model compendium and the certificate design in docs/ARCHITECTURE.md (P1).

Scope. Runs the process on a built-in scenario and certifies the result; it does not benchmark day-to-day models against each other. Reference: Horowitz, J.L. (1984), Transportation Research Part B 18(1).

Canon. [horowitz1984stability], docs/REFERENCES.md / docs/references.bib.

How this notebook is graded

A notebook never claims a number it does not compute in that cell. Every scored quantity below is recomputed live by the P1 Evaluator from the flows the model emitted, in the cell where it is claimed. Model self-reports (the per-day gap/residual, the Lyapunov value) are shown only as provenance and diffed against the certificate, exactly as the harness treats them (README, Certified, not self-reported).

# Setup. `dtd-horowitz` is a core day-to-day model: a plain `pip install -e .` suffices —
# no optional extra, so no guard cell. The inline backend is Agg-based (headless CI
# renders into the notebook); NEVER matplotlib.use("Agg") in-kernel — it silently
# suppresses inline figure capture.
%matplotlib inline
import numpy as np

from tabench import (
    Budget,
    CostSmoothingSUEModel,
    Evaluator,
    RngBundle,
    Trace,
    two_route_scenario,
    viz,
)

The scenario

The built-in two-route logit-SUE anchor (demand 4, dispersion θ=0.5): route A cost 2+f_A, route B cost 1.5+2 f_B. Its rest point is the binary-logit stochastic user equilibrium, recomputed analytically in the certify cell — NOT the deterministic Wardrop UE.

scenario = two_route_scenario()
net = scenario.network
print(f"scenario      : {scenario.name}")
print(f"content hash  : {scenario.content_hash()[:16]}…")
print(f"links         : {net.n_links}  (tail→head: "
      + ", ".join(f"{i}->{j}" for i, j in zip(net.init_node, net.term_node)) + ")")
print(f"total demand  : {scenario.demand.total}")
print("task          : logit SUE, θ=0.5")

scenario      : tworoute
content hash  : 9b98e58b339b702f…
links         : 4  (tail→head: 1->3, 3->2, 1->4, 4->2)
total demand  : 4.0
task          : logit SUE, θ=0.5

Run the adjustment process

The model contract (CONTRIBUTING.md): a model receives (scenario, budget, rng, trace) and records one checkpoint per day — here a budget iteration is a day. Everything the model writes into self_report (the per-day gap/residual, the Lyapunov value) is provenance, not a score.

bundle_trace = Trace()
model = CostSmoothingSUEModel(smoothing_weight=0.3)
# Run the full horizon (no early-stop): the SUE residual settles in ~15 days but the
# perceived-cost state keeps relaxing, and its vanishing is part of what we certify.
model.solve(scenario, Budget(iterations=500), RngBundle(0), bundle_trace)
final = bundle_trace.final
print(f"model            : {model.name}")
print(f"days simulated   : {final.coords.iterations}  "
      f"({final.coords.sp_calls} shortest-path calls)")
print(f"emitted flows    : {np.round(final.link_flows, 6)}")
print(f"self-reported residual: {final.self_report['sue_fixed_point_residual']:.3e}  (provenance only)")

model            : dtd-horowitz
days simulated   : 500  (1000 shortest-path calls)
emitted flows    : [2.299096 2.299096 1.700904 1.700904]
self-reported residual: 3.331e-16  (provenance only)

Certify (P1) — the SUE fixed point AND the descent

The harness recomputes the ADR-001 Dial-STOCH residual from the emitted flows. Certified here: (1) the terminal flows are the logit SUE — residual → 0 with the analytic binary- logit anchor recomputed in-cell, while the deterministic UE gap stays positive (a descriptive column, like sue-msa); (2) the model’s Lyapunov / provenance signature.

from scipy.optimize import brentq
evaluator = Evaluator(scenario)
metrics = evaluator.evaluate(final.link_flows)
residual = metrics["sue_fixed_point_residual"]
print(f"certified SUE residual : {residual:.3e}")
print(f"feasible               : {metrics['feasible']:.0f}")
print(f"UE relative gap        : {metrics['relative_gap']:.3f}  (stays >0 — logit SUE ≠ deterministic UE)")
assert metrics["feasible"] == 1.0
assert residual < 1e-5
assert metrics["relative_gap"] > 0.01  # descriptive column: not the deterministic UE

# Analytic binary-logit SUE anchor, recomputed in-cell (θ=0.5, demand 4): the root of
# f_A = D / (1 + exp(θ(c_A − c_B))), c_A = 2 + f_A, c_B = 1.5 + 2(4 − f_A).
def _resid(f_a):
    c_a, c_b = 2.0 + f_a, 1.5 + 2.0 * (4.0 - f_a)
    return f_a - 4.0 / (1.0 + np.exp(0.5 * (c_a - c_b)))
f_a = brentq(_resid, 0.0, 4.0, xtol=1e-12)
ref_flows = np.array([f_a, f_a, 4.0 - f_a, 4.0 - f_a])
print(f"analytic logit SUE f_A : {f_a:.6f}")
assert np.allclose(final.link_flows, ref_flows, atol=1e-3)
# Honesty (P1): the model self-reports the SAME residual the harness recomputes.
assert np.isclose(
    final.self_report["sue_fixed_point_residual"], residual, rtol=1e-9, atol=1e-12
)
# The perceived-cost gap ||p − t(v)||₁ vanishes at rest. PROVENANCE ONLY -- the
# certified Evaluator has no perceived-cost counterpart (p is internal model state,
# not a certifiable artifact); the SUE fixed point itself is what is certified above.
pgap = [s.self_report["perceived_cost_gap"] for s in bundle_trace]
assert max(pgap) > 1.0 and pgap[-1] < 1e-6
print(f"perceived-cost gap (provenance only) : {max(pgap):.3g} → {pgap[-1]:.2e}")

# The stability threshold w* ≈ 0.81 named in the header, recomputed (not quoted):
# forward-Euler stability of the scalar day map at the fixed point f* requires
# w < 2/(1-Phi'(f*)), where Phi is the logit response map f_A -> D/(1+exp(theta*
# (c_A(f_A)-c_B(f_A)))) and Phi' its derivative at f* (chain rule through
# c_A-c_B = 3 f_A - 7.5, dz/df_A = theta*3).
z_star = 0.5 * (3.0 * f_a - 7.5)
phi_prime = -4.0 * 3.0 * 0.5 * np.exp(z_star) / (1.0 + np.exp(z_star)) ** 2
w_star = 2.0 / (1.0 - phi_prime)
print(f"stability threshold w*  : {w_star:.4f}  (Phi'(f*)={phi_prime:.4f})")
assert 0.80 < w_star < 0.82  # brackets the w=0.5 stable / w=1.0 unstable runs below

# DISTINCTIVE: the constant-weight smoothing map is stable only below w* ≈ 0.81 on this
# anchor. At w = 1.0 (Horowitz's naive current-cost model) it settles into a period-2
# LIMIT CYCLE — the certified residual stays O(1). No damping is added; the instability
# is what the model exists to exhibit.
unstable = Trace()
CostSmoothingSUEModel(smoothing_weight=1.0).solve(
    scenario, Budget(iterations=400), RngBundle(0), unstable
)
res_u = [s.self_report["sue_fixed_point_residual"] for s in unstable]
fa_tail = np.array([s.link_flows[0] for s in unstable])[-50:]
print(f"w=1.0 terminal residual: {res_u[-1]:.3f}  (period-2 limit cycle, not a fixed point)")
assert res_u[-1] > 1.0
assert fa_tail.max() - fa_tail.min() > 1.0  # a genuine oscillation band

certified SUE residual : 3.331e-16
feasible               : 1
UE relative gap        : 0.056  (stays >0 — logit SUE ≠ deterministic UE)
analytic logit SUE f_A : 2.299096
perceived-cost gap (provenance only) : 6.25 → 1.78e-15
stability threshold w*  : 0.8109  (Phi'(f*)=-1.4665)
w=1.0 terminal residual: 3.323  (period-2 limit cycle, not a fixed point)

Visualize

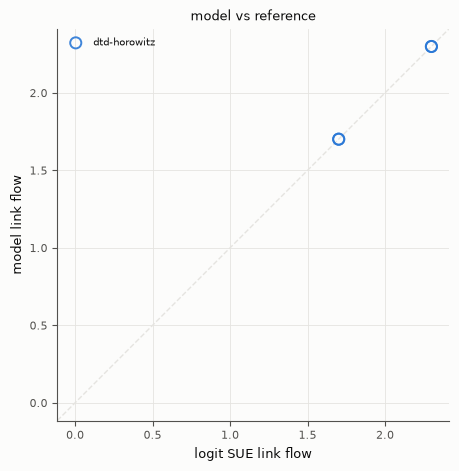

Both figures come from tabench.viz, the house visualizer — every plotted number is one certified above. Left/top: the certified terminal link flows on the network. Right/bottom: the emitted flows against the fixed point recomputed in the certify cell — points on the y = x guide mean the day-to-day process settled on it link-for-link.

# Certified terminal flows on the network (house style via tabench.viz).
display(viz.plot_network_flows(net, final.link_flows))

# Emitted flows vs the logit SUE recomputed above (off-diagonal == not settled).
display(viz.plot_flow_scatter(("logit SUE", ref_flows), {"dtd-horowitz": final.link_flows}))

Takeaways & pointers

• Certified, not self-reported. The residual came from Evaluator at w=0.3 (stable) and, in contrast, at w=1.0 (a certified O(1) limit cycle) — both scored by the identical certificate.

• The day-to-day signature is the point. A UE/SUE solver gives you the fixed point; a day-to-day model gives you the adjustment path to it.

• Where next. the route-swap SUE process dtd-swap-sue; the stochastic sampling process dtd-stochastic; the lineage in the model compendium.
