transit-strategy — Spiess & Florian’s (1989) optimal strategies¶
What. transit-strategy is a transit-assignment model where a passenger
chooses not a single path but a “strategy” — a set of attractive lines to
board whichever comes first — solved as a linear program by a label-setting
pass in decreasing order of expected cost, with frequency-proportional
splitting across the attractive set (common-lines waiting).
Why it is in the benchmark. It is the first TRANSIT model — uncongested,
frequency-based, hyperpath assignment, a genuinely different domain from road
UE — and needed its own parallel scenario type (TransitNetwork, a directed
multigraph with per-arc in-vehicle time and frequency; parallel arcs allowed
so common lines are direct). See the
model compendium (Spiess & Florian 1989) and
docs/design/adr-014-transit-strategy.md (P1).
Scope. This notebook runs optimal_strategy on two built-in common-lines
anchors — one where both lines are attractive, one where a slower line is
excluded — and certifies both against the LP optimum.
Canon. [spiess1989optimal], docs/REFERENCES.md / docs/references.bib.
How this notebook is graded¶
A notebook never claims a number it does not compute in that cell. Every
scored quantity below is recomputed live by the P1 TransitEvaluator from
the emitted per-arc passenger volumes alone — the harness independently
recomputes the LP optimum Z* from the scenario and scores the emitted primal
cost against it; the solver’s own labels/costs are never trusted
(README, Certified, not self-reported).
# Setup. `transit-strategy` is a core model: a plain `pip install -e .`
# suffices — no optional extra, so no guard cell. The inline backend is
# Agg-based (headless CI renders into the notebook); NEVER
# matplotlib.use("Agg") in-kernel — it silently suppresses inline capture.
%matplotlib inline
import numpy as np
from tabench import (
TransitEvaluator,
common_lines_expected_cost,
common_lines_scenario,
common_lines_unattractive_scenario,
optimal_strategy,
)
Instance 1: two attractive common lines¶
One boarding stop (node 0), one destination (node 1), two parallel lines: line
0 (frequency 1/6, in-vehicle 21 min) and line 1 (frequency 1/12, in-vehicle 18
min). TransitScenario is frozen and content-hashed (P2), domain-separated
from the road scenario hash space.
scenario = common_lines_scenario(demand=1000.0)
print(f"scenario : {scenario.name}")
print(f"content hash : {scenario.content_hash()[:16]}…")
print(f"lines (freq, time) : "
f"{list(zip(scenario.network.freq, scenario.network.time))}")
print(f"demand : {scenario.demand.total}")
print("task : optimal-strategy hyperpath transit assignment")
scenario : transit-common-lines
content hash : 27a419a857b96eab…
lines (freq, time) : [(np.float64(0.16666666666666666), np.float64(21.0)), (np.float64(0.08333333333333333), np.float64(18.0))]
demand : 1000.0
task : optimal-strategy hyperpath transit assignment
Solve¶
No Budget/RngBundle/Trace — optimal_strategy is a pure function of the
scenario (one label-setting + loading pass per destination, deterministic, no
equilibration), emitting a TransitStrategy (per-arc passenger volumes, the
P1-certifiable artifact).
strategy = optimal_strategy(scenario)
print(f"arc volumes (line 0, line 1) : {np.round(strategy.arc_volumes, 3)}")
print(f"pair cost (self-reported) : {strategy.pair_costs} (provenance only)")
arc volumes (line 0, line 1) : [666.667 333.333]
pair cost (self-reported) : [24.] (provenance only)
Certify (P1) — the LP optimum, recomputed¶
The harness recomputes the LP-minimal expected cost independently from the
scenario (label-setting, not the model’s own labels) and scores
optimality_gap = (Z_emitted - Z*) / Z* — zero iff the emitted strategy is
optimal.
evaluator = TransitEvaluator(scenario)
metrics = evaluator.certify(strategy)
print(f"feasible : {metrics['feasible']:.0f}")
print(f"expected_cost : {metrics['expected_cost']:.4f}")
print(f"optimality_gap : {metrics['optimality_gap']:.3e}")
print(f"conservation_residual : {metrics['conservation_residual']:.3e}")
assert metrics["feasible"] == 1.0
assert metrics["optimality_gap"] < 1e-9
assert np.isclose(metrics["expected_cost"], 24.0, atol=1e-6) # wait 4 + ride 20
# Recompute the closed form directly from the scenario's own lines, not quoted:
# combined frequency F=1/6+1/12=1/4, C*=(1+sum f*t)/F.
lines = [(1 / 6, 21.0), (1 / 12, 18.0)]
c_star, attractive = common_lines_expected_cost(lines)
print(f"closed-form C* : {c_star:.6f} attractive lines: {attractive}")
assert np.isclose(c_star, 24.0, atol=1e-9)
assert attractive == [0, 1] # both lines attractive
# The frequency-share split: v0/v1 = f0/f1 = 2:1, recomputed from the emitted
# arc volumes directly.
split = strategy.arc_volumes / scenario.demand.total
print(f"demand split (line 0, line 1) : {np.round(split, 4)} (closed form: 2/3, 1/3)")
np.testing.assert_allclose(split, [2 / 3, 1 / 3], atol=1e-9)
feasible : 1
expected_cost : 24.0000
optimality_gap : 0.000e+00
conservation_residual : 0.000e+00
closed-form C* : 24.000000 attractive lines: [0, 1]
demand split (line 0, line 1) : [0.6667 0.3333] (closed form: 2/3, 1/3)
Instance 2: the attractiveness threshold¶
Line 0 alone (frequency 1/6, in-vehicle 15 min) gives an expected cost
1/(1/6) + 15 = 21 min. Line 1 (frequency 1/12, in-vehicle 40 min) has an
onward cost of 40, NOT below 21 — so it is excluded from the strategy
entirely, and every passenger boards line 0.
scenario2 = common_lines_unattractive_scenario(demand=1000.0)
strategy2 = optimal_strategy(scenario2)
evaluator2 = TransitEvaluator(scenario2)
metrics2 = evaluator2.certify(strategy2)
print(f"feasible : {metrics2['feasible']:.0f}")
print(f"expected_cost : {metrics2['expected_cost']:.4f}")
print(f"optimality_gap : {metrics2['optimality_gap']:.3e}")
assert metrics2["feasible"] == 1.0
assert metrics2["optimality_gap"] < 1e-9
assert np.isclose(metrics2["expected_cost"], 21.0, atol=1e-6)
lines2 = [(1 / 6, 15.0), (1 / 12, 40.0)]
c_star2, attractive2 = common_lines_expected_cost(lines2)
print(f"closed-form C* : {c_star2:.6f} attractive lines: {attractive2}")
assert np.isclose(c_star2, 21.0, atol=1e-9)
assert attractive2 == [0] # line 1 excluded
# All demand on line 0 (line 1 carries zero volume).
print(f"arc volumes (line 0, line 1) : {np.round(strategy2.arc_volumes, 3)}")
np.testing.assert_allclose(strategy2.arc_volumes, [1000.0, 0.0], atol=1e-6)
feasible : 1
expected_cost : 21.0000
optimality_gap : 0.000e+00
closed-form C* : 21.000000 attractive lines: [0]
arc volumes (line 0, line 1) : [1000. 0.]

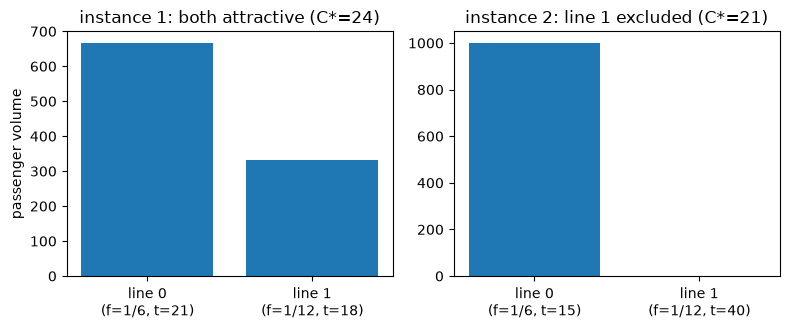

Visualize¶
tabench.viz draws the road Network; a transit common-lines scenario is a
TransitNetwork (a different scenario type entirely, adr-014), so this
notebook plots the two strategies’ frequency-share splits directly.
import matplotlib.pyplot as plt
fig, axes = plt.subplots(1, 2, figsize=(8.0, 3.4))
axes[0].bar(["line 0\n(f=1/6, t=21)", "line 1\n(f=1/12, t=18)"], strategy.arc_volumes)
axes[0].set_title(f"instance 1: both attractive (C*={metrics['expected_cost']:.0f})")
axes[0].set_ylabel("passenger volume")
axes[1].bar(["line 0\n(f=1/6, t=15)", "line 1\n(f=1/12, t=40)"], strategy2.arc_volumes)
axes[1].set_title(f"instance 2: line 1 excluded (C*={metrics2['expected_cost']:.0f})")
fig.tight_layout()
display(fig)
plt.close(fig)
Takeaways & pointers¶
Certified, not self-reported. Both instances’ optimal costs came from
TransitEvaluator’s own independent label-setting pass, not the model’s self-reported labels.The attractiveness threshold is exact. A line joins the strategy only while its onward cost stays below the running expected cost — instance 2 shows the cut, not just the split.
Where next. the lineage in the model compendium; the parallel-module pattern it shares with the DNL core
ctm.
