so-bfw — System optimum by bi-conjugate Frank–Wolfe on the Braess network

What. The system optimum (SO) minimises TOTAL travel time rather than letting each traveller minimise their own — Wardrop’s second principle. It is the same Beckmann machinery run on marginal-cost link functions, so so-bfw reuses the bi-conjugate Frank–Wolfe solver against t_a + v_a t_a' ([sheffi1985urban], docs/REFERENCES.md).

Why it is in the benchmark. It is the reference for the price of anarchy and marginal-cost tolling, and the SO half of the equilibrium picture. See the model compendium and docs/ARCHITECTURE.md (P1).

Scope. Runs on the built-in Braess scenario and certifies the SO gap; it then contrasts the SO flows with the selfish (UE) equilibrium recomputed in-cell — the Braess point. It is not a Wardrop UE solver — see bfw.

How this notebook is graded

A notebook never claims a number it does not compute in that cell. Every scored quantity below is recomputed live by the P1 Evaluator from the flows the model emitted, in the cell where it is claimed. Model self-reports are shown only as provenance and diffed against the certificate as an honesty check, exactly as the harness treats them (README, Certified, not self-reported).

# Setup. `so-bfw` is a core model: a plain `pip install -e .` suffices — no
# optional extra, so no guard cell. The inline backend is Agg-based (headless CI
# renders into the notebook); NEVER matplotlib.use("Agg") in-kernel — it silently
# suppresses inline figure capture.
%matplotlib inline
import numpy as np

from tabench import (
    Budget,
    Evaluator,
    RngBundle,
    SystemOptimumModel,
    Trace,
    braess_scenario,
    viz,
)

The scenario

The built-in Braess network: 4 nodes, 5 links, a single OD pair (1 → 2) with demand 6. Scenarios are frozen and content-hashed (P2) — the hash printed below is the identity of the benchmark instance, so a silently edited network cannot masquerade as it.

scenario = braess_scenario()
net = scenario.network

print(f"scenario      : {scenario.name}")
print(f"content hash  : {scenario.content_hash()[:16]}…")
print(f"links         : {net.n_links}  (tail→head: "
      + ", ".join(f"{i}->{j}" for i, j in zip(net.init_node, net.term_node)) + ")")
print(f"total demand  : {scenario.demand.total}")

scenario      : braess
content hash  : cf00f411cdccec88…
links         : 5  (tail→head: 1->3, 1->4, 3->4, 3->2, 4->2)
total demand  : 6.0

Solve

The model contract (CONTRIBUTING.md): a model receives (scenario, budget, rng, trace), records checkpoints, and respects the budget. Budgets are hardware-free (iterations / shortest-path calls; wall-clock is recorded but never the ranking axis, P7). Whatever the model writes into self_report is provenance, not a score.

model = SystemOptimumModel()
bundle = model.solve(scenario, Budget(iterations=200), RngBundle(0), Trace())

final = bundle.final
print(f"model              : {model.name}")
print(f"budget spent       : {final.coords.iterations} iterations, "
      f"{final.coords.sp_calls} shortest-path calls")
print(f"emitted SO flows   : {np.round(final.link_flows, 6)}")
print(f"self-reported SO gap: {final.self_report['so_relative_gap']:.3e}  (provenance only)")

model              : so-bfw
budget spent       : 4 iterations, 5 shortest-path calls
emitted SO flows   : [3. 3. 0. 3. 3.]
self-reported SO gap: 0.000e+00  (provenance only)

Certify (P1)

The SO is scored by its own relative gap on the marginal cost, recomputed by an Evaluator with so_metrics=True. We then recompute the selfish UE in-cell to make the Braess point concrete: the SO AVOIDS the paradox-inducing bypass 3→4 entirely, and its total travel time is strictly below the UE’s — the price of anarchy.

ue_flows = np.array([4.0, 2.0, 2.0, 2.0, 4.0])  # the Wardrop UE, for contrast

evaluator = Evaluator(scenario, so_metrics=True, root_seed=0)
metrics = evaluator.evaluate(final.link_flows)
so_gap = metrics["so_relative_gap"]
print(f"certified SO relative gap : {so_gap:.3e}")
print(f"feasible                  : {metrics['feasible']:.0f}")

assert metrics["feasible"] == 1.0
assert abs(so_gap) < 1e-8

# Honesty diff (P1): the SO self-report matches the certificate.
assert np.isclose(final.self_report["so_relative_gap"], so_gap, rtol=1e-9, atol=1e-12)

# Anchor RECOMPUTED: the Braess SO puts ZERO flow on the bypass 3->4, and its total
# travel time is strictly below the selfish UE's (the price of anarchy).
bypass = next(
    k for k in range(net.n_links) if net.init_node[k] == 3 and net.term_node[k] == 4
)
print(f"bypass (3->4) SO flow     : {final.link_flows[bypass]:.3e}")
assert final.link_flows[bypass] < 1e-6

so_tstt = metrics["tstt"]
ue_tstt = evaluator.evaluate(ue_flows)["tstt"]
print(f"SO total time (TSTT)      : {so_tstt:.3f}")
print(f"UE total time (TSTT)      : {ue_tstt:.3f}")
print(f"price of anarchy (UE/SO)  : {ue_tstt / so_tstt:.4f}")
assert so_tstt < ue_tstt

certified SO relative gap : 0.000e+00
feasible                  : 1
bypass (3->4) SO flow     : 0.000e+00
SO total time (TSTT)      : 498.000
UE total time (TSTT)      : 552.000
price of anarchy (UE/SO)  : 1.1084

Visualize

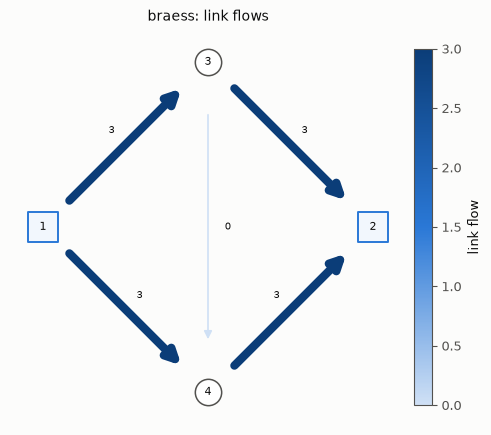

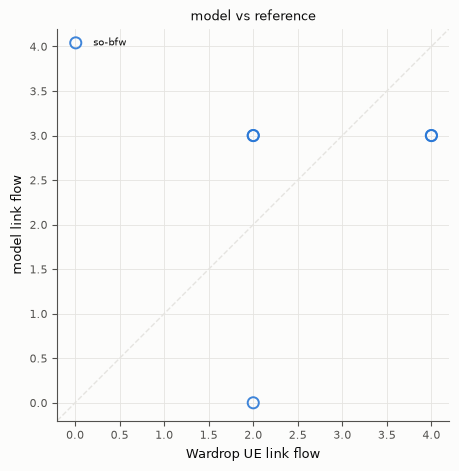

Both figures come from tabench.viz. Left/top: the SO link flows on the Braess diamond — the 3→4 bypass carries ZERO flow (the SO refuses the paradox link). Right/bottom: the SO flows against the selfish UE recomputed above; the points sit OFF the y = x guide — SO and UE are different flows, which is the whole point.

display(viz.plot_network_flows(net, final.link_flows))
display(viz.plot_flow_scatter(("Wardrop UE", ue_flows), {"so-bfw": final.link_flows}))

Takeaways & pointers

• Certified, not self-reported. The SO gap came from Evaluator(so_metrics=True); the self-report was only diffed against it.

• The Braess point, computed. The SO avoids the bypass and beats the UE’s total time — the price of anarchy printed above, recomputed in-cell, not quoted.

• Where next. The selfish equilibrium it improves on: bfw; the SO design and marginal-cost tolls in the model compendium.
